Schmetic of Instruments at "SMAPex Sites"

The following variables are continuously monitored at the SMAPex project sites:
* Soil moisture, using one SDI-12 soil moisture probes (at 5cm).
* Soil temperature, using three Unidata 6507A temperature sensors (at 1cm, 2.5cm, 5cm).

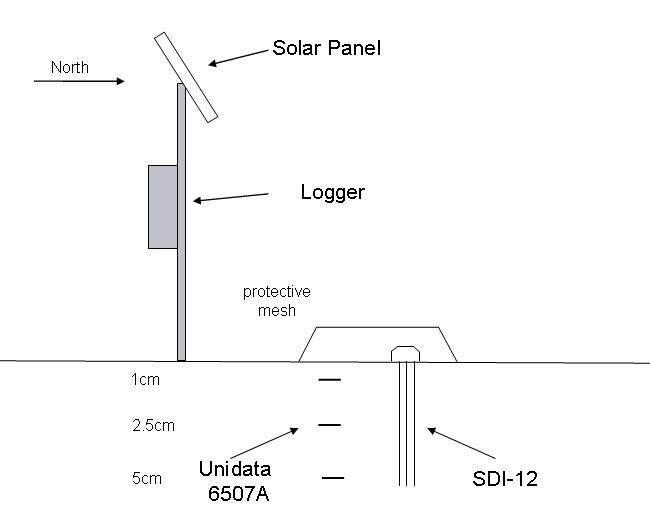

The image to the right shows the instrumental array. Click on the image for further details of each instrument.
SDI-12 Soil temperature probe datalogger Solar Panel
